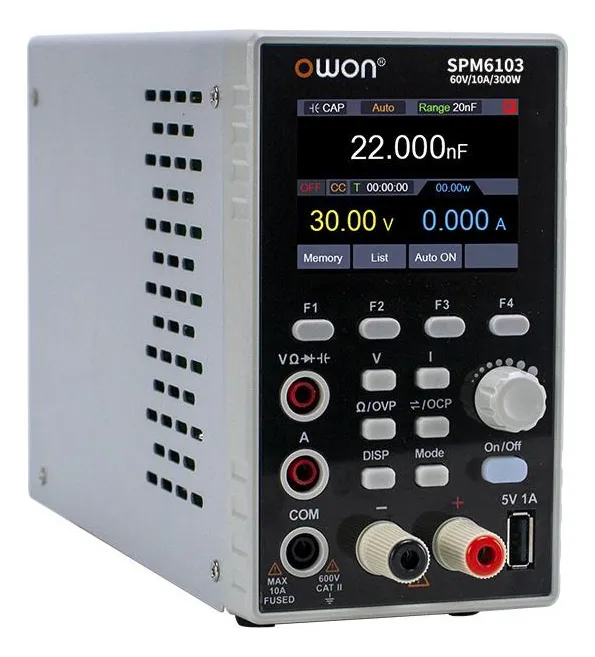

FUENTE DIGITAL PROGRAMABLE OWON SPM6103 60V 10A 300W

ESPECIFICACIONES TÉCNICAS:
– Channel: Single Channel Output
– Total Output Power: 300W
– Channel Output: 0 – 60V / 0 – 10A
– USB Output: 5V/1A(SPE Series) or suppout QC2.0, QC3.0, BC1.2, Apple, Huawei, Samsung fast charging protocols (SPE-U Series)
– Display: 2,8 inch color LCD display
– Dimension: 82mm × 142mm × 226mm
– Weight: 1,5 kg
– Interface: USB
– Rated Output (0 C – 40 C):
-Voltage: 0 – 60V
-Current: 0 – 10V
-Output power: 300W
– Load Regulation:
-Voltage: menor 30mV
-Current: menor 20mA
– Power Regulation:
-Voltage: menor 30mV
-Current: menor 20mA
– Setting Resolution:
-Voltage: 10mV
-Current: 1mA
– Readback Resolution:
-Voltage: 10mV
-Current: 1mA
– Value Resolution (within 12 months) (20 C – 30 C):
-Voltage: menor a 0,1% (+/-) 30mV
-Current: menor a 0,05% (+/-) 10mA
– Readback Value Resolution (20 C – 30 C):
-Voltage: menor a 0,1% (+/-) 30mV
-Current: menor a 0,1% (+/-) 10mA
– Ripple / Noise:
-Voltage (Vp-p): menor a 50mVp-p
-Voltage (rms): menor a 5mVrms
-Current (rms): menor a 30mAp-p
– Output temperature coefficient: (0 C – 40 C):
-Voltage: 100ppm/C
-Current: 200ppm/C
– Readback temperature coefficient:
-Voltage: 100ppm/C
-Current: 200ppm/C
– Response Time: menor 1.0 ms
– Storage: 4 groups of data
– Working Temperature: 0 C – 40 C

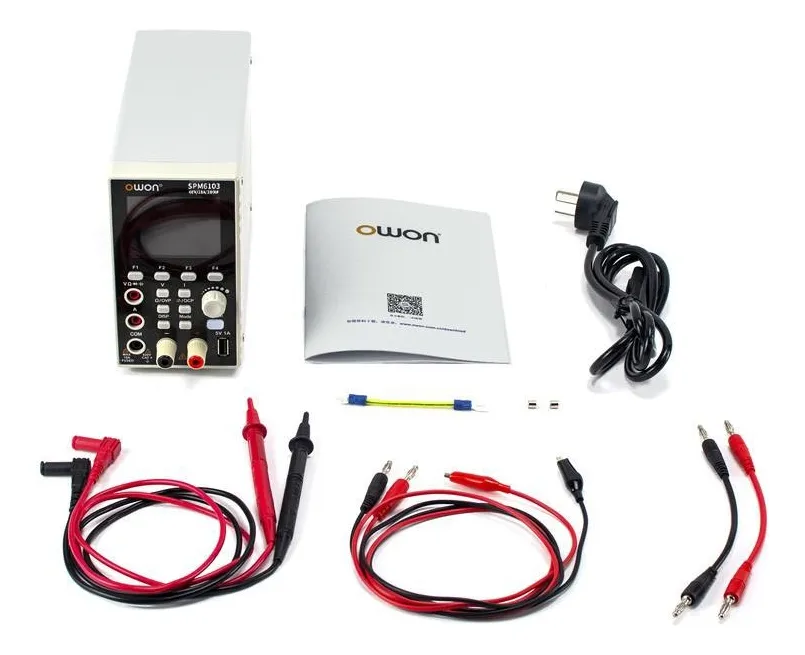

INCLUYE

– Puntas para medición
– Cable de alimentación
– Cable USB
– Fusible
– Manual de usuario
